Combo® SR2000 / SR2010

The SR2000 and SR2010 are Heavy duty versions of the Combo®; an effective combination of a roller brake tester, a weighing system and a hi-speed suspension tester for passenger cars, vans and light commercial vehicles. All in one chassis. It is the first tester of its kind on the market and has a unique price-performance ratio.


Compact chassis. Only 2.2 m²!


The operator drives onto the suspension tester plates, tests the front axle and drives into the rollers. Repeat this for the rear axle and the parking brake. Within two minutes testing time, the results will be visible on the display. Due to the integrated weighing system, the brake efficiencies (decelerations) of the vehicle will be calculated automatically and can be compared with legal requirements for the service- and parking brake.

The SR2000 contains leveled rollers. The SR2010 is equipped with raised rear rollers.

Add a sideslip meter to create a full test lane.

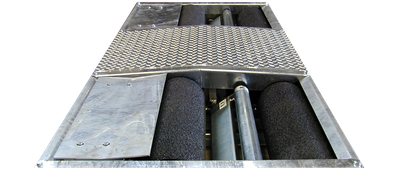

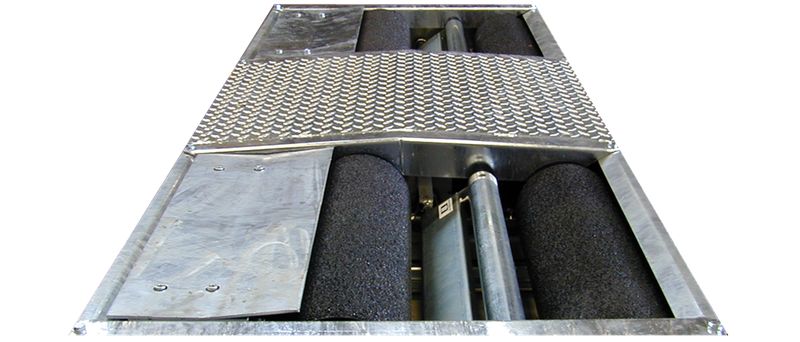

SR2010HR Combo
Advantages:
  • Compact tester.
  • High quality.
  • Reliable worm gear motors.
  • Hot dip zinc chassis.
  • High range.
  • No damaged tires.
  • Standard 4x4.
  • Easy positioning on suspension plates.
  • Faster than anything else.
  • Extensive analysis.

SR2000/SR2010 Specifications

Brakes
Maximum axle load
4000 kg
Measuring range
8000 N
Motor(s)
2x 5,5 kW
Roller speed
5 km/h
Roller dimensions
700 x 206 mm
Suspension
Measuring quantities
Adhesion & Damping
Frequency
0-24 Hz
Motor(s)
1x 2,2 kW
Measuring range
2000 kg/wheel weighing
Measuring range
1250 kg/wheel testing
Measuring plate
78 x 20 cm (WxL)
General
Track
700-2200 mm
Dimensions
234 x 92 x 30 cm
Finish
Hot dip zinc

Options

  • Roller cover plates, non pivoting
  • Roller cover plates, pivoting
  • Steel rollers
  • Wide track adaptor set
  • Free run roller set
  • Sideslip meter
Brochure downloads

Impression

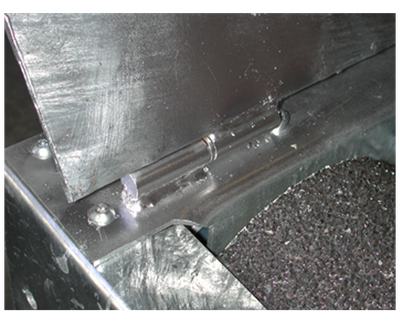

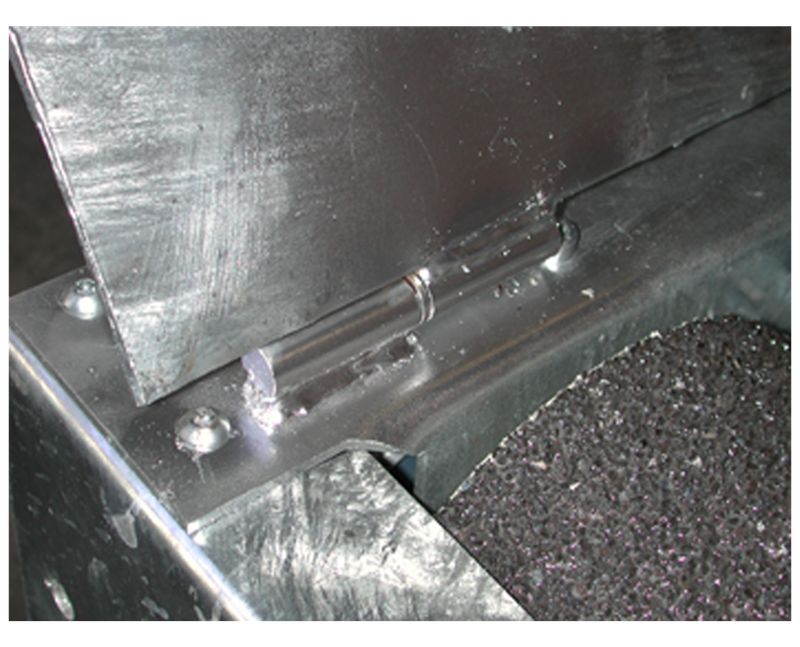

RT cover plate
Pivoting galvanised cover plates.

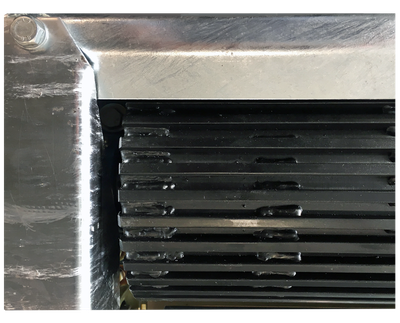

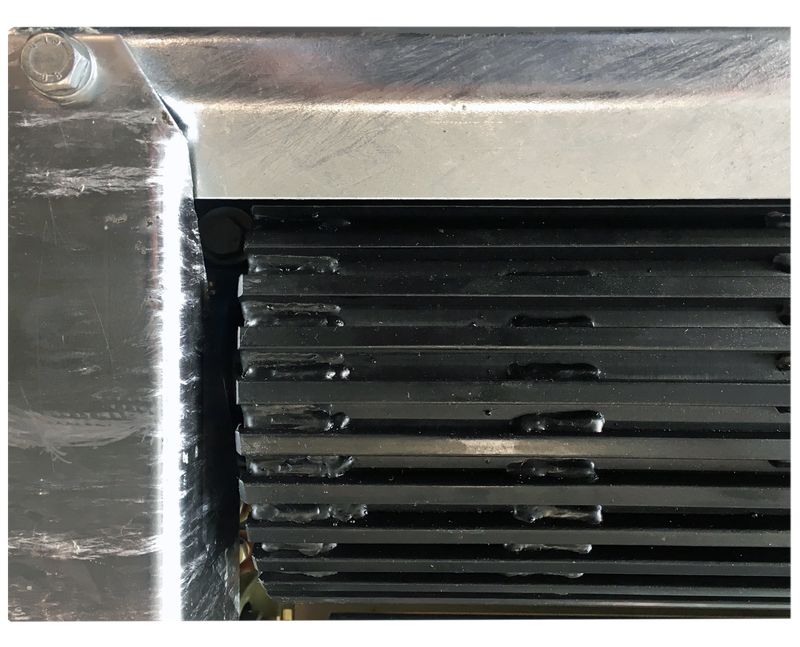

RT steel rollers
Steel rollers for tyres with spikes.

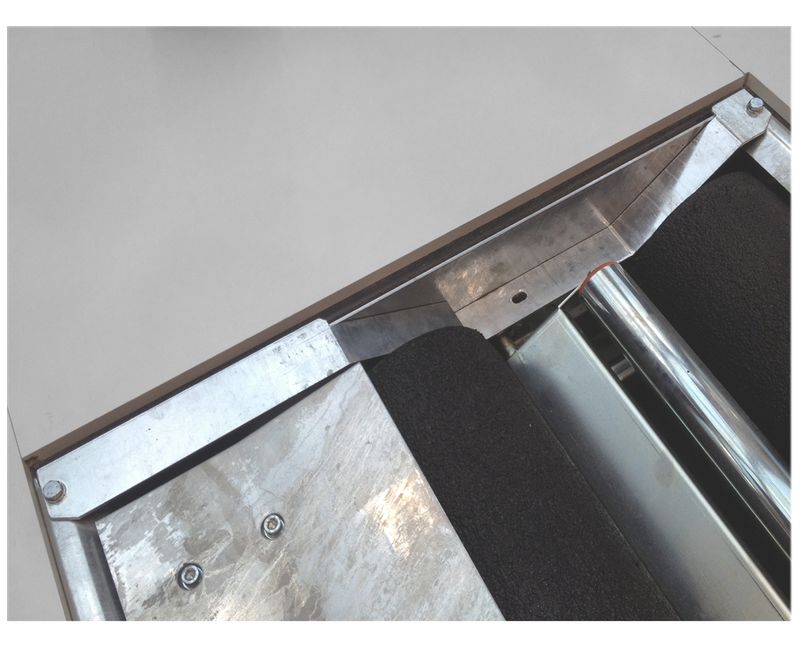

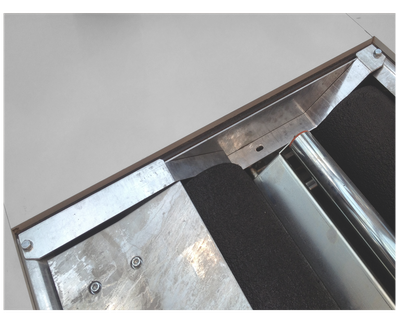

SR wide track
Wide track adapter.

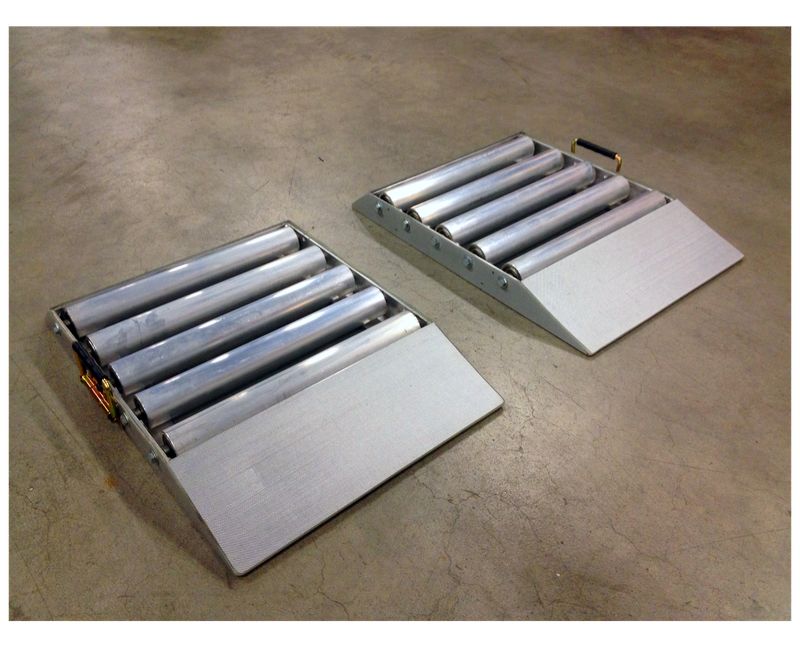

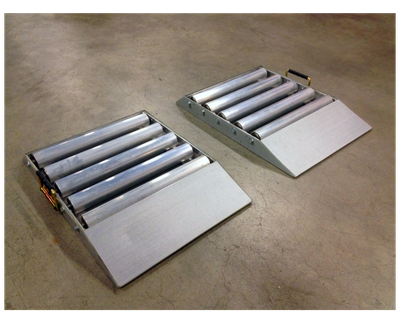

Free run roller set
Free run roller set.
