Speedometer SP2002
Single bed speedometer SP2002 for passenger cars, vans and light commercial vehicles with a standard track of 2080mm and with 700mm rollers.

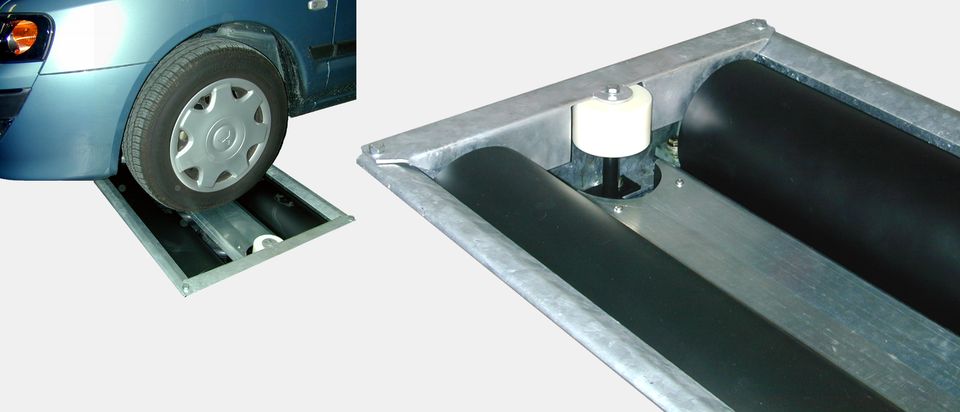

The speedometer is designed to test the accuracy of the speed indicator in the vehicle. The speedometer consists of two pairs of dynamically balanced rollers. The vehicle’s wheels drive these rollers, while an electronic speed sensor measures the vehicle speed, which is continuously displayed on the screen. The speedometer is equipped with a pneumatic lift- and brake system for Easy Exit® out of the rollers. The speedometer has four side protection rollers to prevent rim and tire damage.
Specifications
- SP2002
-
Maximum axle load2000 kgMeasuring range0-100 km/hTrack870-2080 mmRoller dimensions700 x 190 mmDimensions234 x 66 x 30 cmFinishHot dip zinc
